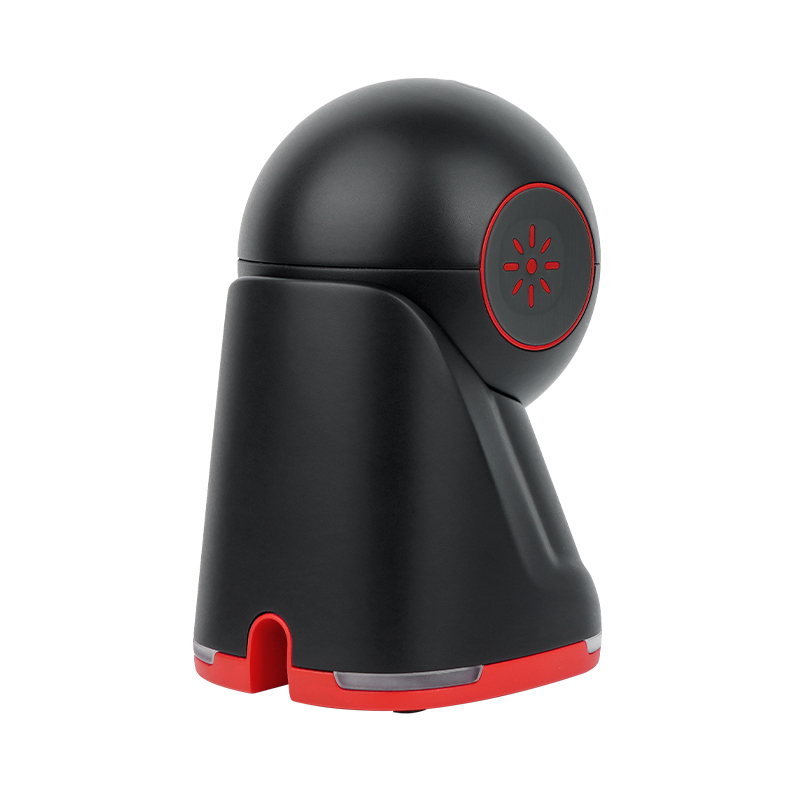

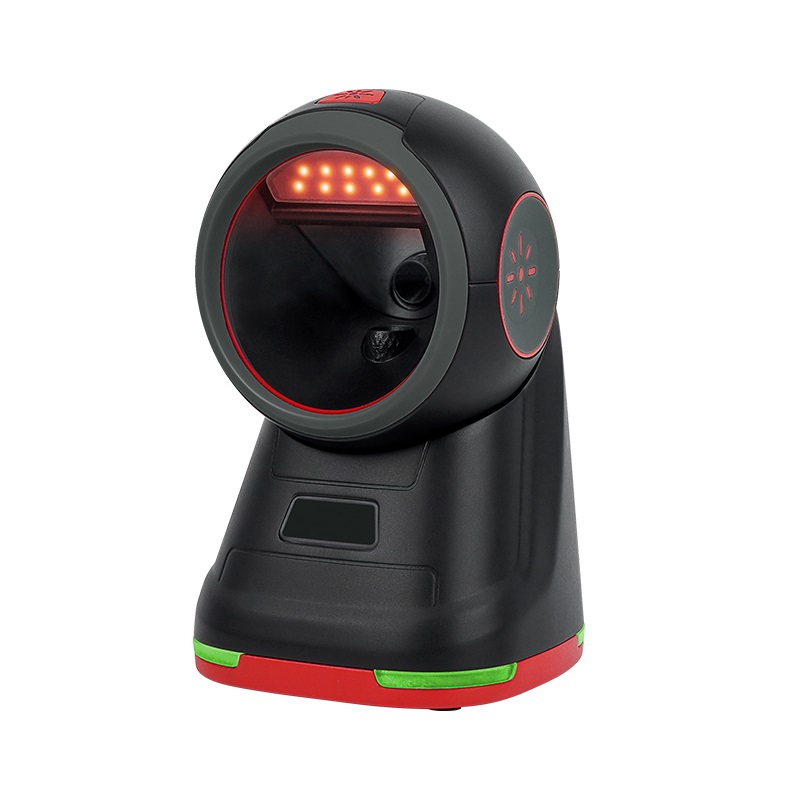

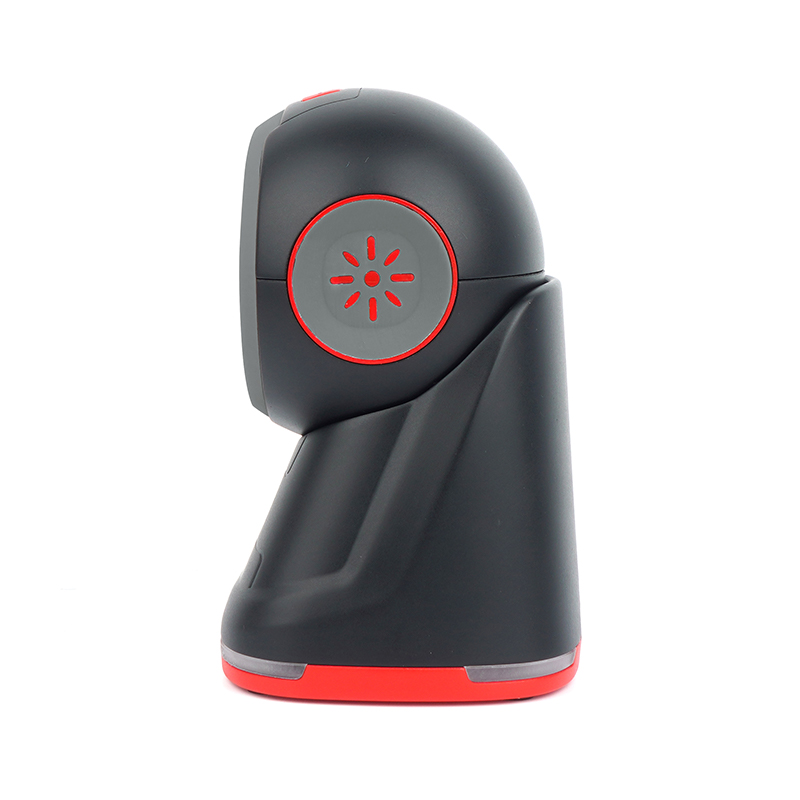

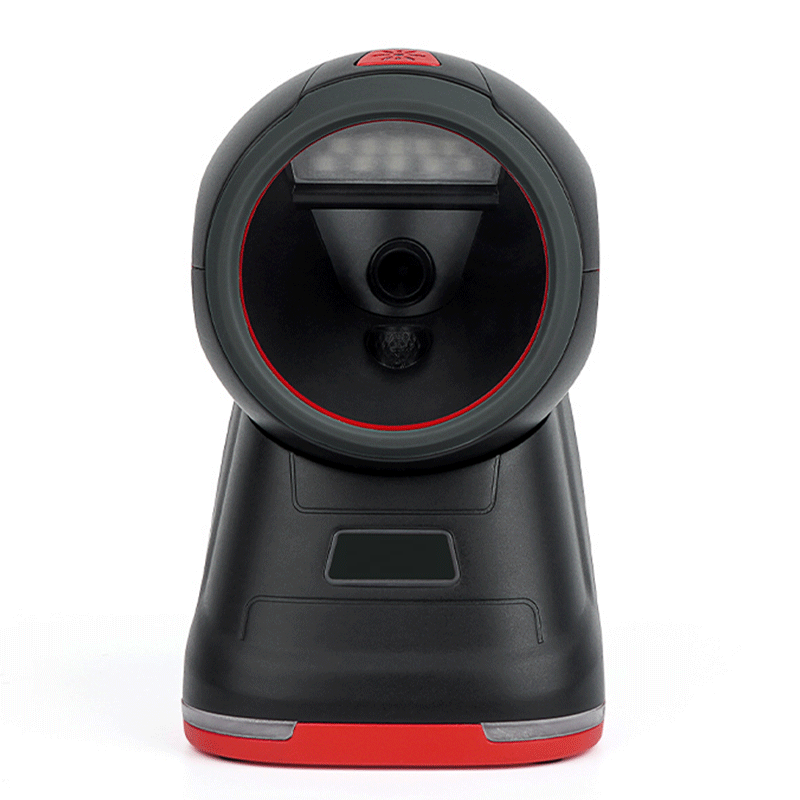

QR Code Reader X8-860B 1D and 2D 30-150mm

449,00 PLN with VAT

Description

Wired Barcode and QR Code Reader X8-860B was created with remote work in mind. It is characterized by a compact shape which allows you to save work space. The device stands out from others thanks to an extraordinary appearance.
The whole thing is kept in black colors with elements of red and will fit into any interior, enhancing the aesthetic value of the surroundings.

The device is equipped with a high-quality scanning system that allows for very fast and accurate reading of leading 1D and 2D codes.

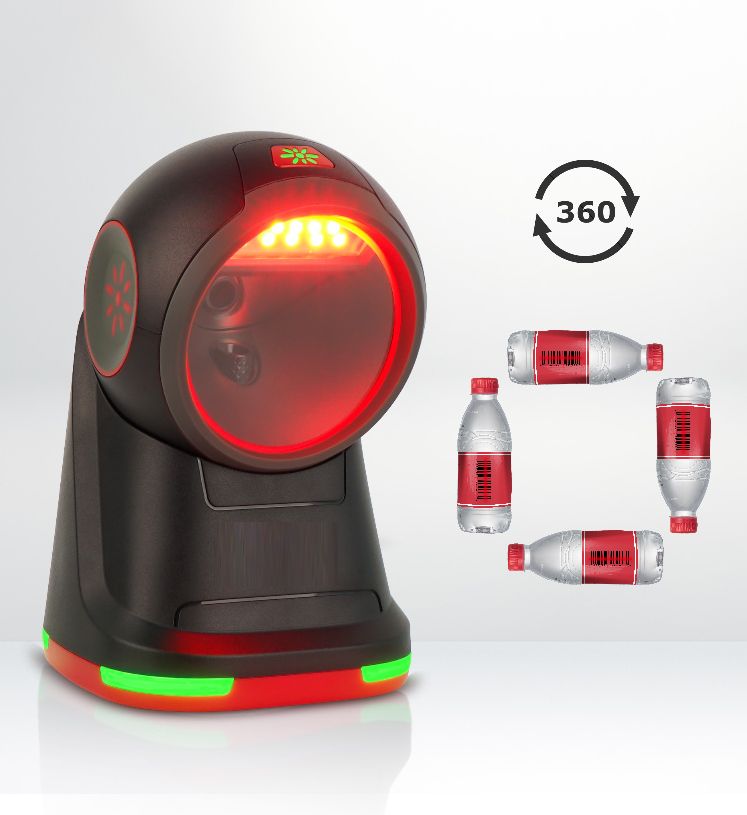

In addition, the device offers 360 degree scanning angle, which eliminates the need to set the code in a specific position. This affects maximum efficiency and freedom of work.

The X8-860B model is made of high-quality materials and has a solid construction that ensures durability and long life of the equipment. The easy operation of the device is undoubtedly a huge advantage of this product.

Scanning is automatic, just bring the barcode closer. This solution eliminates the need to use the button.

Specification

Model X8-860B
Type of light red LED
Scan Type CMOS imaging
Resolution 640 * 480
Scan Type auto detect scanning/continuous scanning
Scanning angles rotation ± 360°, elevation ± 65°, declination ± 65°
Scanning depth 30 – 160 mm (EAN 13 13mil, PCS-90%)
Interface USB, RS232, USB-COM
Material ABS + PC
Minimum reflective difference 20%
Minimum recognition accuracy Code 39 4mil
Feed speed 4m/sec
Physical parameters 96*108*150mm
Working temperature -20°C ~ 50°C
Storage temperature -40°C ~ 70°C
Relative humidity 5% ~ 95% RH (non-condensing)
Ambient lighting 0 ~ 100000LUX
Resilience multiple falls onto concrete from a height of 1.5m
Operating voltage DC5V±5%
Cable length 2m
Buzzer Start, read code
Libra 294.4 grams
Operating current working condition 240mA
Standby current 190mA
Power supply USB-A cable
1D reading Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5, Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, ISBT 128, GS1- 128, UPC-A, UPC-EO, UPC-E1, EAN/JAN-13, EAN/JAN-8, ISBN, MSI, GS1 DataBar-Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded
2D reading PDF417, QR code, DataMatrix, Aztec Code, China Post, HongKong 2 of 5, Korea Post, Han Xin code, Maxi code, Micro PDF417, GS1 Composte coders, Codablock A, Codablock F
Compatibility Linux, Android, Windows XP/7/8/10
Guarantee
12 months (option 24/36 months)
